VAV Instruments

SR. NO.

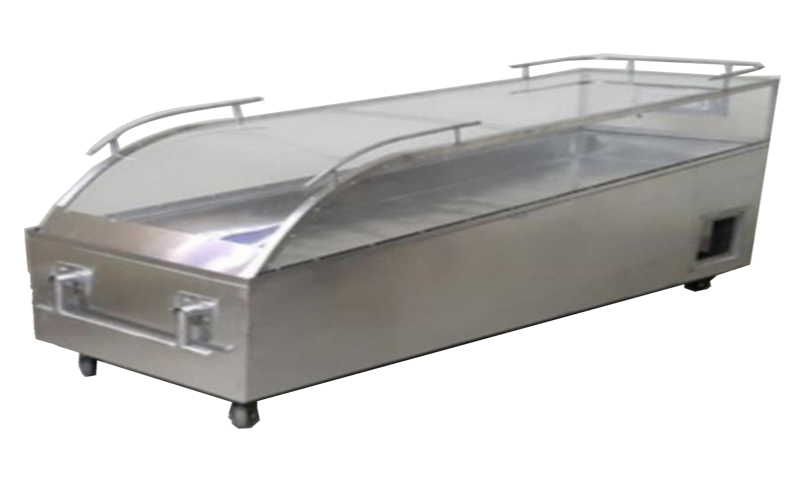

DISCRIPTION OF SINGLE BODY (VIMC01)

1.

The Mortuary box assembly should be for simplified, rugged, reliable and efficient, capacity: 1 (ONE) bodies. It should have full SS construction both inside and outside surface.

2.

Mortuary unit outer body 20 guagess.and inner 22 guage ss.

3.

Mortuary unit  have direct colling.

4.

TOP cover openable easy IN / OUT movement of body and for easy loading and unloading to the respective with handles.

5.

Top cover make A grade transparent acrylic heavy duty unbreakable light weight.

6.

The puff used shall have a density of at least 40 kg/m3

7.

Insulation 50 mm thickness.

8.

The unit have a Microprocessor based temperature controller and should have facility for to display and control of process parameters. It should have facility to display setted temperature and current temperature. Temperature range : + 2 to 6 ° C.

9.

Compartment havetemperature indicator / controller unit  mounted on the front of unit corresponding to body box .

10.

The unit have  audio-visual alarms in case of low/high temperatures, system malfunctions etc

11.

Energy efficient & environment friendly cooling system should be ISI certified high end ultra-mute CFC-free hermetically sealed compressors, conforming to latest international standards and guidelines.

12.

Cooling compressors should be of reputed make kirloskar Emmerson.0.75 ton.

13.

Lockable wheels

14.

Outer size : 84/30/34 inch (L/W/H with top cover)

Inner size : 80/26/20 inch ( L/W/H)

15.

Weight : 75 kg.

16.

Inbuilt stabilizer.2 kva

17.

Operating voltage : 230 V AC/50Hz.
